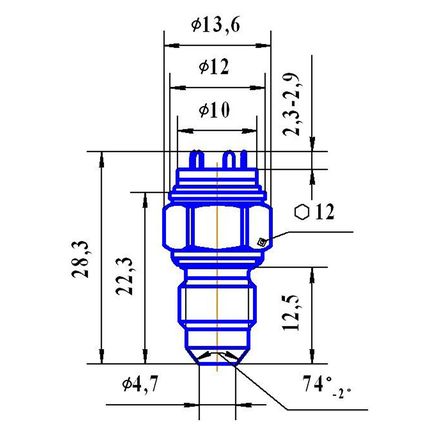

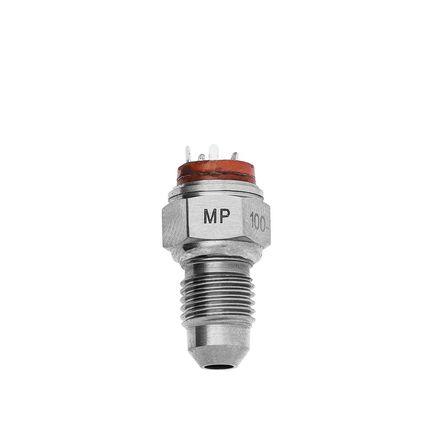

Pressure sensor MP 1(1,6...150)-...
Operating pressure range, MPa
from 0-1 to 0-150
Operating temperature range, °С:
Version 1 from -45 to +125
Version 2 from -45 to +155
Version 3 from -45 to +200
Connecting threads:
М8х1; 5/16-24UNF (1-25 MPa)
М10х1; 3/8-24UNJF; 3/8-24UNF (1-150 MPa)
Mass, g
6,4
MP Series is available in two versions: with wires or pins.
Pressure sensors with wires are represented on this page.
If wished, pressure sensors can be designed at customer's request.
Please contact us: +7 (4862) 303-450
