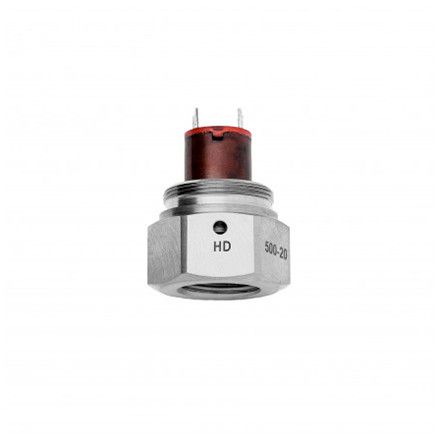

Pressure sensor HD 100(160...500)-...-2M(2U)

Operating pressure range, MPa

from 0-100 to 0-500

Operating temperature range, °С:

Version 1 from -45 to +125

Version 2  from -45 to +155

Version 3  from -45 to +200

Connecting threads:

М16х1,5; М18х1,5; 9/16-18UNF

Mass, g

29

HD Series is available in two versions: with wires or pins.

Pressure sensors with pins are represented on this page.

If wished, pressure sensors can be designed at customer's request.

Please contact us: +7 (4862) 303-450
