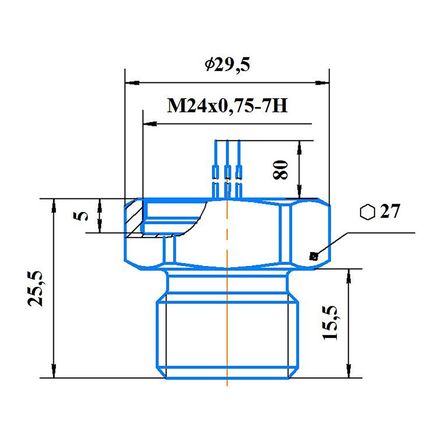

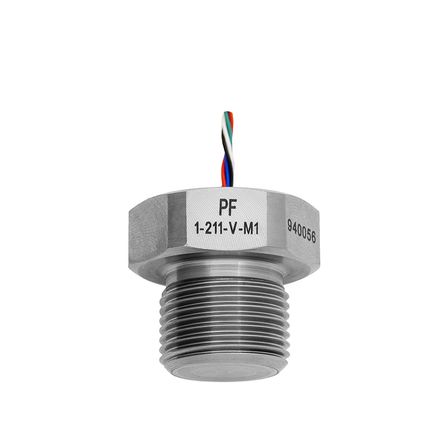

Flush diaphragm pressure sensor PF 1(1,6…10) - …

Operating pressure range, MPa

from 0-1 to 0-10

Operating temperature range, °С:

Version 1 from -40 to +125

Version 2 from -20 to +155

Version 3 from -20 to +200

Connecting threads:

М20х1,5; G1/2''; K1/2''

Mass, g

46

Design features

 Thread connecting piece with flush diaphragm.

 Various thread options for pressure connection piece.

 Available with wires and pins. Pin version enables to place the electronic board on the sensors pins.

 DC (С type) and voltage (V type) power supply.

 Closed or open bridge

If wished, pressure sensors can be designed at customer's request.

Please contact us: +7 (4862) 303-450
