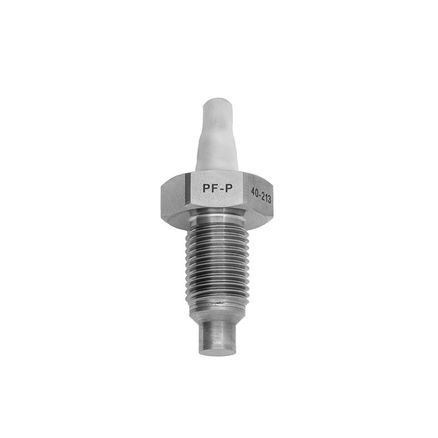

Pressure sensor PF-P 16(25;40) – 103(113, 203, 213, 303, 313) - ….

Operating pressure range, MPa

from 0-16 to 0-40

Operating temperature range, °С:

Version 1 from -40 to +125

Version 2 from -20 to +155

Version 3 from -20 to +200

Connecting threads:

М14×1,5; 9/16-18UNF

Mass, g

35

Design features

 Thread connecting piece with flush diaphragm.

 Various thread options for pressure connection piece.

 Available with wires and pins. Pin version enables to place the electronic board on the sensors pins.

 DC (С type) and voltage (V type) power supply.

 Closed or open bridge

If wished, pressure sensors can be designed at customer's request.

Please contact us: +7 (4862) 303-450
