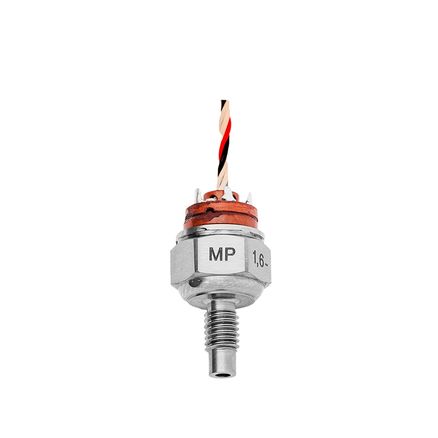

Pressure sensor MP 1(1,6...10)-...

Operating pressure range, MPa

from 0-1 to 0-10

Operating temperature range, °С:

Version 1 from -45 to +125

Version 2  from -45 to +155

Version 3  from -45 to +200

Connecting threads:

M5x0,8; 10-32UNF

Mass, g

4,8

MP Series is available in two versions: with wires or pins.

Pressure sensors with wires are represented on this page.

If wished, pressure sensors can be designed at customer's request.

Please contact us: +7 (4862) 303-450
