Pressure sensor MD 0,25(0,4...1)-...
Operating pressure range, MPa
from 0-0,25 to 0-1
Operating temperature range, °С:
Version 1 from -45 to +125
Version 2 from -45 to +155
Version 3 from -45 to +200
Connecting threads:
M10x1,25
Mass, g
10

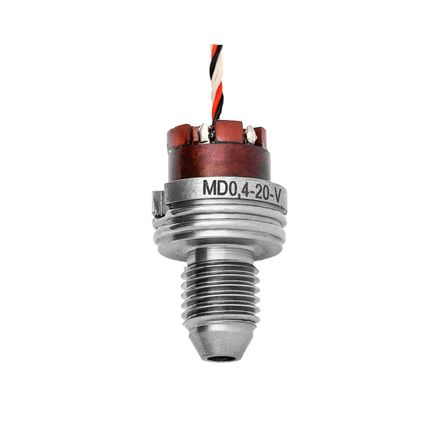

MD Series is available in two versions: with wires or pins.
Pressure sensors with wires are represented on this page.
If wished, pressure sensors can be designed at customer's request.
Please contact us: +7 (4862) 303-450
