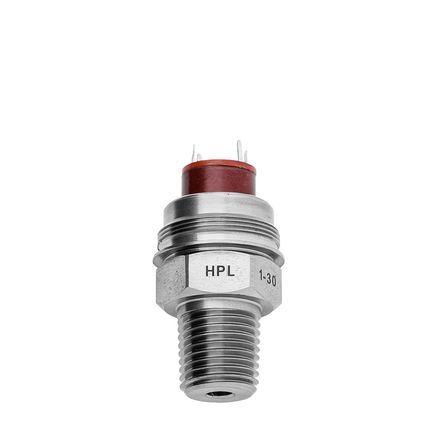

Pressure sensor HPL 0,25(0,4...150)-...

Operating pressure range, MPa

from 0-0,25 to 0-150

Operating temperature range, °С:

Version 1 from -45 to +125

Version 2  from -45 to +155

Version 3  from -45 to +200

Connecting threads:

K1/4"; G1/4"; M12x1,25; M14x1,5

Mass, g

30

HPL Series is available in two versions: with wires or pins.

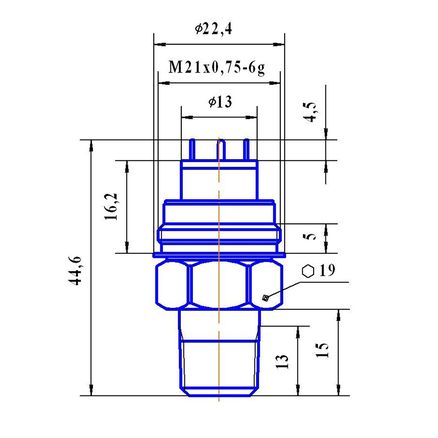

Pressure sensors with pins are represented on this page.

If wished, pressure sensors can be designed at customer's request.

Please contact us: +7 (4862) 303-450
