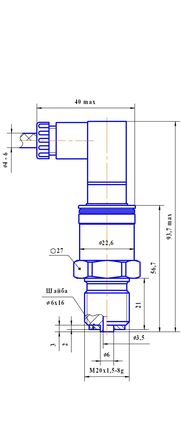

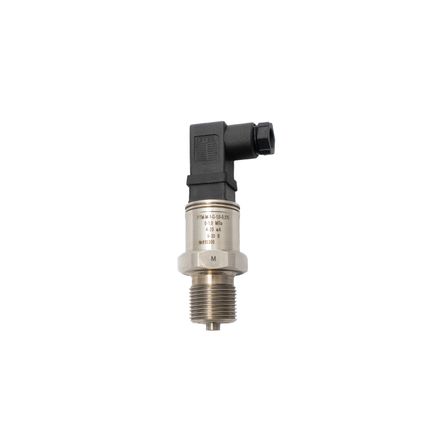

Microelectronic pressure transmitters PTM-M series
Operating pressure range, MPa
from 0-0,1 to 0-250
Operating temperature range, °С:
from -40 to +85
Connecting threads:
K1/4"; G1/4"; M12x1,25; M20x1,5; G1/2’’; М16×1,5; М18×1,5.
Mass, g
120
Output range (FS), мВ:
4-20 mA
0-5 V
0,5-4,5 V
Primary error:
0,25%
0,5%
Electrical connection:
P2; GDM; КР10; 2РМДТ18
If wished, pressure sensors can be designed at customer's request.
Please contact us: +7 (4862) 303-450
