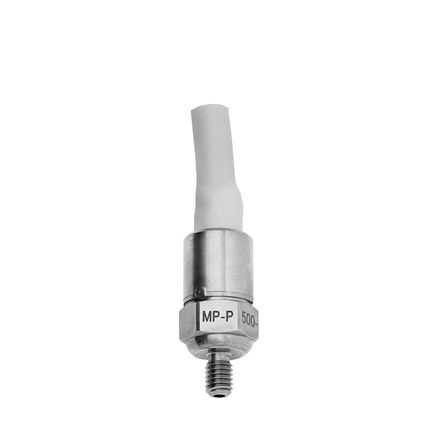

Pressure sensor MP-P series
Operating pressure range, MPa
from 0-1 to 0-150
Operating temperature range, °С:
Version 1 from -45 to +125
Version 2 from -45 to +155
Version 3 from -45 to +200
Connecting threads:
10-32UNF; М5х0,8 (1-10 MPa)
5/16-24UNF; М8х1 (1-25 MPa)
3/8-24UNF; 3/8-24UNJF; М10х1 (1-150 MPa)
Mass, g
28
Design features
Available with flexible cable (0,5-2 m) to use remote electronic, protection level IP65.
Various thread options for pressure connection pieces.
DC voltage supply.
If wished, pressure sensors can be designed at customer's request.
Please contact us: +7 (4862) 303-450
