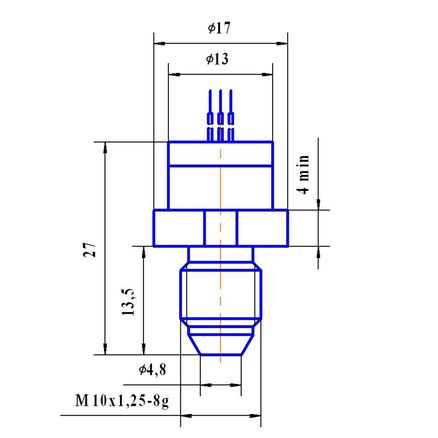

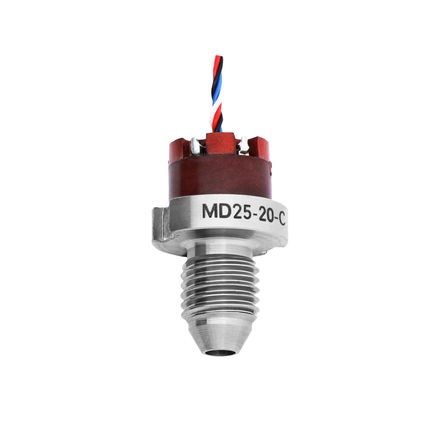

Pressure sensor MD 16(25...150)-...
Operating pressure range, MPa
from 0-16 to 0-150
Operating temperature range, °С:
Version 1 from -45 to +125
Version 2 from -45 to +155
Version 3 from -45 to +200
Connecting threads:
M10x1,25
Mass, g
9
MD Series is available in two versions: with wires or pins.
Pressure sensors with wires are represented on this page.
If wished, pressure sensors can be designed at customer's request.
Please contact us: +7 (4862) 303-450
