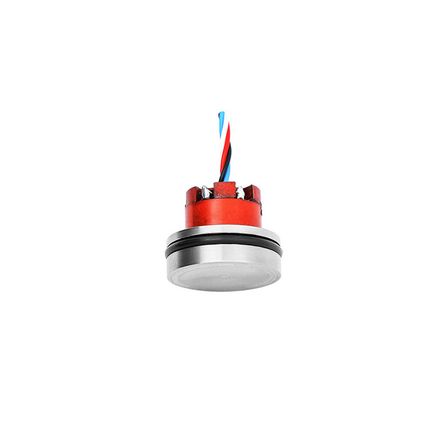

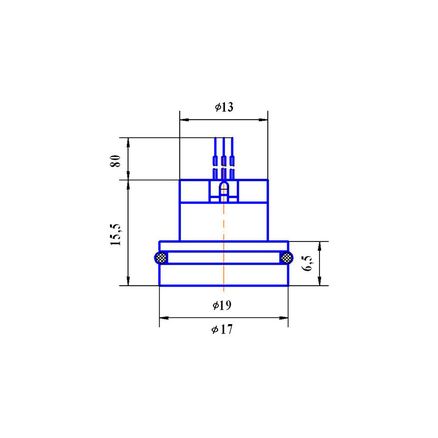

Flush diaphragm pressure sensor with threadless body Р 0,25(0,4…10)-…-D17-…

Operating pressure range, MPa

from 0-0,25 to 0-10

Operating temperature range, °С:

Version 1 from -40 to +100

Version 2  from -20 to +155

Version 3  from -20 to +200

Connecting threads:

without thread

Mass, g

8

Design features

 Flush diaphragm.

 Threadless body with O-ring.

 Available with wires and pins. Pin version enables to place the electronic board on the sensors pins.

 DC (С type) and voltage (V type) power supply.

 Closed or open bridge.

If wished, pressure sensors can be designed at customer's request.
