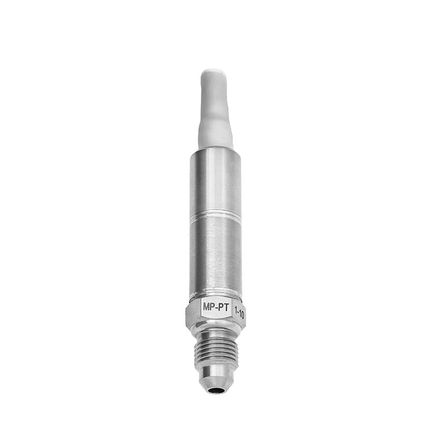

Pressure sensor MP-PT with temperature sensor
Operating pressure range, MPa
from 0-1 to 0-150
Operating temperature range, °С:
Version 1 from -45 to +125
Version 2 from -45 to +155
Version 3 from -45 to +200
Connecting threads:
М5х0,8; 10-32UNF (1-10 MPa)
М8х1; 5/16-24UNF (1-25 MPa)
М10х1; 3/8-24UNJF; 3/8-24UNF (1-150 MPa)
Mass, g
34
Design features
Pressure sensors MP-PT series are intended for control of pressure and temperature and provide continuous conversion of gas and liquid media pressure and temperature into electric signals.
Available with flexible cable (0,5-2 m) to use remote electronic, protection level IP65.
Various thread options for pressure connection pieces.
DC voltage supply.
Closed bridge.
If wished, pressure sensors can be designed at customer's request.
