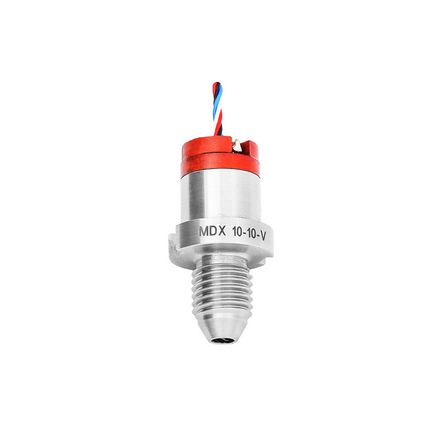

Stainless steel pressure sensor MDX
Operating pressure range, MPa
from 0-2,5 to 0-100
Operating temperature range, °С:
Version 1 from -45 to +125
Version 2 from -45 to +155
Version 3 from -45 to +200
Connecting threads:

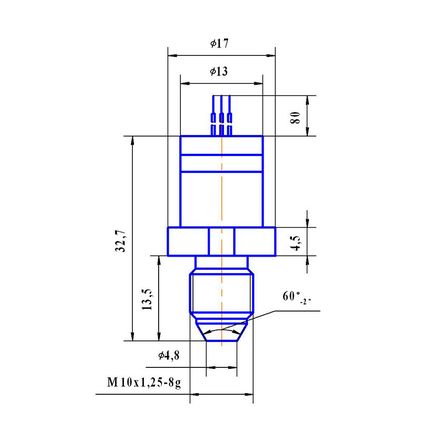

М10х1,25
Mass, g
19
Design features
Sensor body and diaphragm are made of stainless steel which enables to use them in spark-proof pressure transmitters.
Available with wires and pins. Pin version enables to place the electronic board on the pins.
DC (С type) and voltage (V type) power supply.
Closed or open bridge
If wished, pressure sensors can be designed at customer's request.
Please contact us: +7 (4862) 303-450
